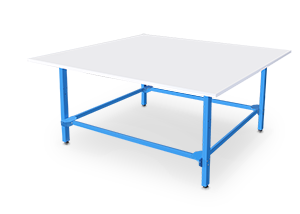

Cutting table Ocean SK-200
The cutting table is the primary place of work in the cutting room, so it's important that the construction was safe, stable and reliable. Ocean cutting table is distinguished by very high precision, unprecedented stability and attention to aesthetics. Design your own cutting table The special girder nodes give the construction light weight and high stiffness (nodes are shown in pictures 3 and 4). Installation of the table is very simple and can be made in the cutting room alone. Modular design allows any length of the table and the possibility to install the optional equipment. Four table widths are available as standard - 182, 202, 222 and 242 cm, but we can produce non-standard sizes to suit any cutting room. The table offers the adjustment of height and can be provided with casters. The table top has a solid surface and a strong PVC tape, which protects the edges of the table. The frame with the table top is a basic construction that can be further expanded to a full CUTMaster spreading table.
Use configurator! You can configure this product by using a configurator. Technical data
Length of segment:
1,40 m
Width of the table:
2,02 m
Height:
86-90 cm (with castors - 90 cm)
Frame:
powder coated steel profiles
Table top:
25 mm, 2 mm PVC framed
Non-standard dimensions:
on request
|
|
|
Available versions
2 m
 615 € net
3.2 m
923 € net
4.6 m
1308 € net
6 m
1692 € net
7.4 m
2077 € net
8.8 m
2462 € net
10.2 m
2846 € net
11.6 m
3231 € net
|
